ALTREP string interoperability
R’s ALTREP system lets packages represent string data more efficiently. But acrosses packages, ALTREP vectors usually materialize back into ordinary R strings, and that step can be costly.
charport is an experimental package with the goal of removing that materialization cost by making ALTREP strings interoperable. The hope is that ALTREP strings become more than package-local optimization and become shared infrastructure.
This work is supported by the R Consortium Infrastructure Steering Committee, under the grant Universal ALTREP Interoperability for Strings.
ALTREP string access
The diagram below shows the base R access path and the charport path side by side.
Both start from an ALTREP vector from a producer package. On the base R path, the consumer accesses strings through the R API; work is done to materialize ALTREP strings into ordinary R strings. On the charport path, the consumer opens a charport::Reader on the same vector, and the producer hands back a read-only view of the string data. The extra materialization work can be avoided.

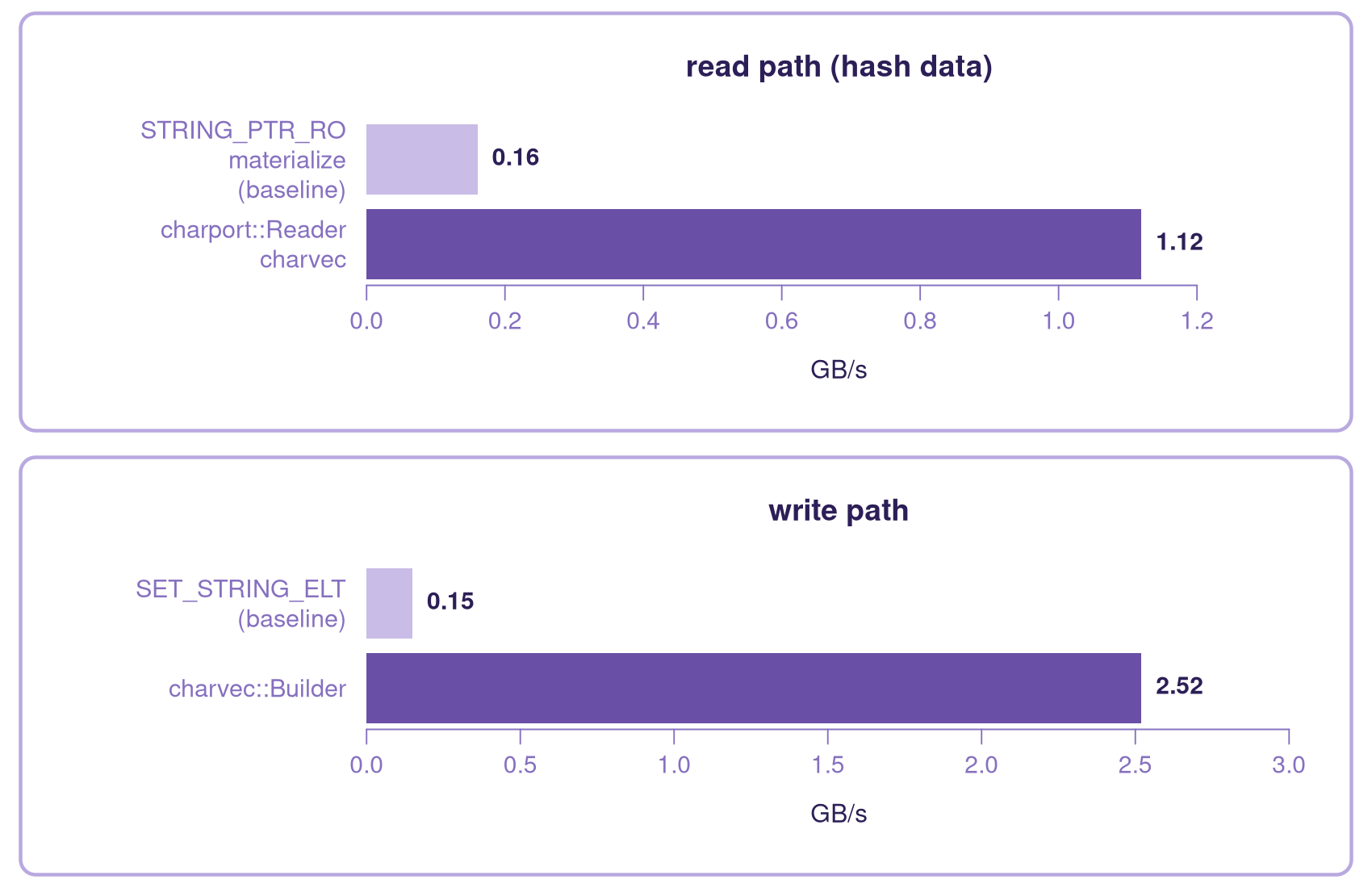

The benchmark below runs these paths on the enwik8 dataset, the first 1E8 bytes of Wikipedia. The benchmark asks: how much is avoiding materialization worth?
These measurements show order-of-magnitude performance improvements are possible by working with ALTREP strings end-to-end. The figure shows the serial case. Because ALTREP classes do not rely on R memory, parallel construction and access can improve on these numbers.
A broker for ALTREP strings
charport acts as a small broker for ALTREP strings:
- A producer package registers its ALTREP string class via
register_altrep. - A consumer package accesses string data through
charport::Reader. - Registered ALTREP classes can be read directly; ordinary vectors and unregistered ALTREP classes fall back to standard R behavior.
The interface is intended to be minimal and safe. It is available for both C++ and C.
charvec: a reference ALTREP character vector
charport also includes charvec, which stores string data in large data blocks.
To R, a charvec behaves like an ordinary character vector. In compiled code, a charvec can be constructed serially or across multiple worker threads, then read through charport::Reader without materialization.
It serves as both a reference implementation and an efficient general-purpose class.
Integration into packages
Package authors can use charport from either side of the interface.
The developer guide covers registration, string access, fallback behavior, pointer lifetime, thread safety, and the charvec builder.
-
Package developer guide, also listed by
utils::vignette(package = "charport"). - Error handling, for a deeper dive into error handling.
- Design rationale, for an explanation of design choices in this package.
